American Bass USA

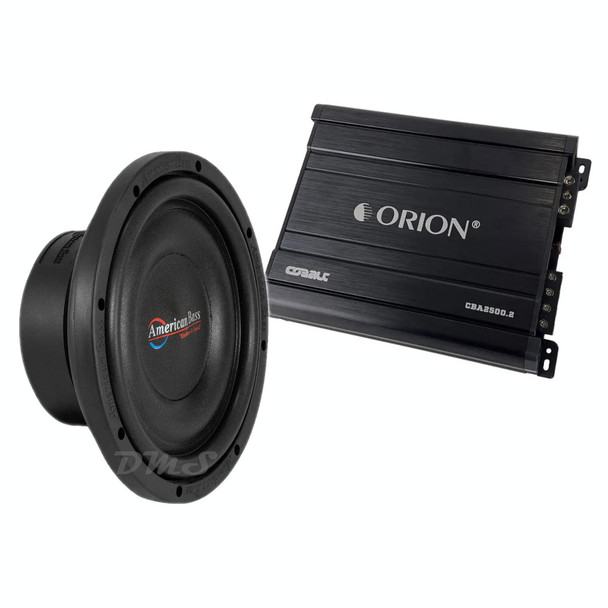

American Bass SL 10 Package | 10" 600W S4 Slim Subwoofer & Orion CBA2500.2 Amplifier
- MPN:
- SL-104, CBA2500.2
- Condition:
- New
- Shipping:
- Free (2 to 6 Business Days)
Description
Sub & Amp Package Deal
(1) American Bass SL 10 Inch 600W SVC 4 Ohm Shallow Slim Subwoofer | SL104
(1) Orion Cobalt CBA2500.2 | 2500W Max 2 Channel Full Range Amplifier
*This setup is intended to run at 4 Ohms Bridged
Are you looking for booming bass without taking up too much space? The SL slim subwoofer is here to show that less can be more when it comes to bass. Get ready for the gut-wrenching bottom end that rivals any full-sized subwoofer out there. Despite its compact and non-obtrusive design, we swear we didn't take away anything from the resonance of this product. So don't just take up space in your vehicle, take it up with power! Get ready to turn heads with the SL slim subwoofer.
Also Known As: SL-104 / SL10S4 / SL-10S4 / SL-10-S4
Subwoofer Details:
• MAX Power Handling: 600W
• RMS Power Handing: 300W
• Impedance: SVC 4 Ohm
• Sensitivity: 87.3 dB
• Mounting Diameter: 9.05"
• Mounting Depth: 3.62"
• Weight: 12 lbs.
• Heavy Duty Stamped Steel Basket With Black Powder Coat Finish
• Rigid And Light Composite Paper Cone
• High Roll Foam Surround For High Excursion
• 2.0" 4-Layer High Temperature Voice Coil With Nomex Bobbin
• Black Poly Cotton Spider With Woven Tensile
• Double Stacked 80oz. High Grade Magnets
• Voice Coil Direct Cooling Motor Design
• Rubber Gasket And Rubber Magnet Boot
• Chrome Push Terminals
• Recommended Ported Box Size: 0.5 Cubic Feet
• Owner's Manual / Spec Sheet
Amplifier Details:
• 2500W Peak Rating
• 175W RMS X 2 @ 2 Ohms
• 80W RMS X 2 @ 4 Ohms
• 350W RMS X 1 @ 4 Ohms Bridged
• Frequency Response: 10Hz - 30kHz
• High Pass Crossover Continuously Variable: 50 - 1.2kHz
• Low Pass Crossover Continuously Variable: 40 - 250Hz
• Supply Voltage: 10 - 16V
• Input Impedance: 22k Ohm
• Signal to Noise Ratio: >90 dB
• Variable Bass Boost: 0 - 12dB
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 40A (1 x 40A ATC)
• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 10 AWG
• Dimensions: 9.41" x 7.09" x 2.13"
• Total Weight (Approx.): 4 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 2-Ohm Stable
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
