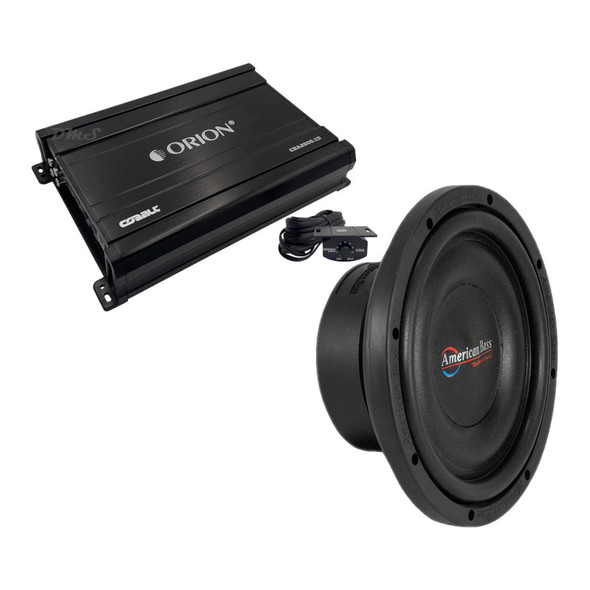

American Bass XD 10 V2 Package | 10" 900W D2 Subwoofer & Orion CBA2000.1D Amplifier

Sub & Amp Package Deal

(1) American Bass XD 10 Inch 900W DVC 2 Ohm Subwoofer | XD1022 V2

(1) Orion Cobalt 2000W Max Monoblock Subwoofer Amplifier | CBA2000.1D

*This setup is intended to run at 1 Ohm

Ready to add some thunder to your ride? The XD Series subwoofer from American Bass is here to help! With its high-grade design and tight bass response, this subwoofer delivers plenty of clarity and depth to your car's audio system. Plus, with its even power output and fan-favorite status of best-selling subwoofers, you can count on the XD Series to provide an all-around excellent audio experience that's sure to please most car audio enthusiasts. So why wait? Upgrade your car's audio system today with the powerful and versatile XD Series V2 subwoofer!

Also Known As: XD-1022 / XD10D2 / XD-10D2 / XD-10-D2 / XD1022-V2 / XD-1022-V2

Subwoofer Details:

• MAX Power Handling: 900W
• RMS Power Handing: 450W
• Impedance: DVC 2 Ohm
• Frequency Range: 30-500Hz
• Sensitivity: 83.1 dB
• Mounting Diameter: 9.24"
• Mounting Depth: 6.2"
• Weight: 17 lbs.
• 2.5" Diameter High-Temp Voice Coil
• Stamped Steel Basket w/ Black Powder Coat
• Kevlar Reinforced Non-Pressed Paper Cone
• 1.4" Wide 3-Layer Foam Surround
• 130oz. Stacked Magnet Structure
• Rubber Gasket & Magnet Boot
• Chrome Push Terminals
• Recommended Ported Box Size: 1.25 Cubic Feet

Amplifier Details:

• 2000W Peak Rating
• 500W RMS X 1 @ 1 Ohm
• 260W RMS X 1 @ 2 Ohms
• 160W RMS X 1 @ 4 Ohms
• Frequency Response: 10Hz - 250Hz
• Subsonic Filter: 15 - 50Hz
• Low Pass Crossover Continuously Variable: 40 - 250Hz
• Supply Voltage: 10 - 16V
• Input Impedance: 22 KOhm
• Signal to Noise Ratio: >90 dB
• Phase Shift: 0/180 Degrees
• Variable Bass Boost: 0 - 12 dB
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 60A (2 x 30A ATC)
• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 10 AWG
• Dimensions: 9.92" x 7.09" x 2.13"
• Weight (Approx.): 4 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 1-Ohm Stable
• Remote Gain Controller Included
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage
