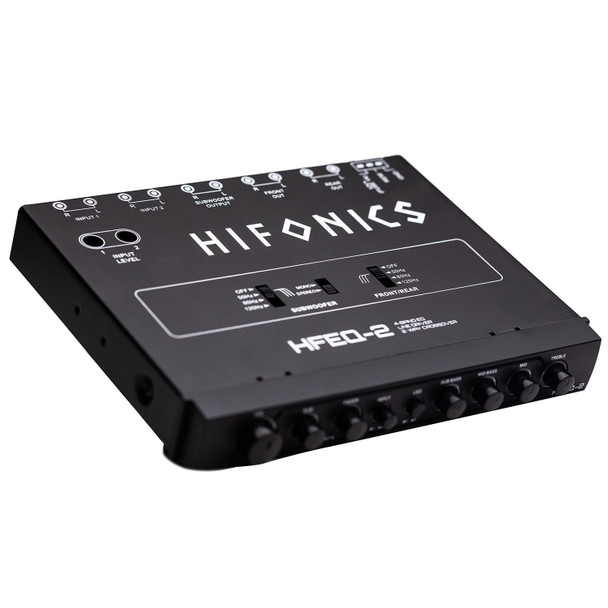

Hifonics HFEQ-2 | 4 Band Graphic Equalizer Bass Enhancer w/ 9 Volt Output

Hifonics HFEQ-2 | 4 Band Graphic Equalizer Bass Enhancer w/ 9 Volt Output

The Hifonics HFEQ-2 is an in-dash, half-DIN 4-band pre-amp equalizer, 2-way active crossover, and high-voltage line driver. Designed to mount directly inside or underneath a vehicle dashboard, it gives you precise, real-time control over system volume, frequency balancing, and source switching right from the driver’s seat.

Also Known As: HFEQ2 / HF-EQ2 / HF-EQ-2

Features:

• 4-Band Equalizer
• 2-Way Crossover
• 9 Volt Line Driver
• Multiple-Source Signal Processor
• LED Color Options
• Sleek Black Design
• 1/2 Din Compact Size

Specs:

• Output Channels (Left/Right): Front/Rear/Subwoofer
• Input Channels (Left/Right): Input 1 / Input 2
• Input Range Of Gain Control (dB): >40
• Maximum Input Voltage (V): >10
• Input Impedance (K-ohms): >20
• Maximum Output Voltage: >9
• Volume Gain (dB): >40
• -3dB Low Pass Frequency (Hz): 50>80>120
• -3dB High Pass Frequency (Hz): 80>120>200
• Low Pass/High Pass Slope/Octave: 12
• Equalization Frequencies (Hz): 45>120>2200>12000
• Equalization Cyt Or Boost (dB): 18
• Distortion At 1khz - 1v (%): .01
• Channel Separation At 1khz (dB): >80
• Signal To Noise Ratio (dB): >100
• Frequency Response (Hz) (-1db): 10-50k
• Weight (Approx.): 1 lbs.

Owner's Manual / Spec Sheet
