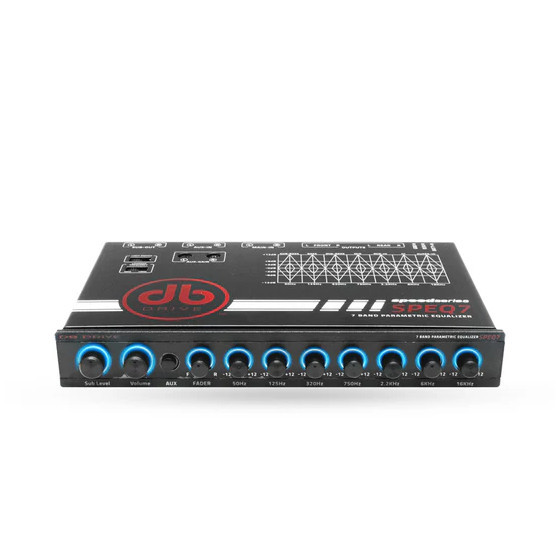

DB Drive SPEQ7 | 7 Band Graphic Equalizer Bass Enhancer w/ 8 Volt Output

DB Drive SPEQ7 | 7 Band Graphic Equalizer Bass Enhancer w/ 8 Volt Output

SPEQ7: Unleash the True Power of Your Sound with DB Drive!

Introducing the DB Drive SPEQ7, the ultimate 7 Band Equalizer and Line Driver designed to elevate your audio experience to the next level. With its sophisticated 7-band graphic equalizer, you have precise control over every aspect of your sound, ensuring crystal clear highs and deep, resonant lows. The rear panel auxiliary 2 channel RCA inputs with adjustable input gain allow for seamless connectivity and customization. Enjoy the flexibility of rear panel Front/Rear/Subwoofer RCA outputs, variable volume level control, and a variable subwoofer level control that puts you in command of your audio environment. The adjustable fader control and selectable 12dB Low-pass Crossover at 60Hz or 90Hz ensure that you can tailor your sound exactly to your liking. With dual illumination options in amber and blue, the SPEQ7 is not only a powerhouse of audio performance but also adds a touch of style to your setup. And with a maximum output level of 8 volts, you can be assured of unparalleled sound quality and power.

Experience the difference with the DB Drive SPEQ7 and transform your audio journey today.

Also Known As: SP-EQ7 / SPEQ-7 / SP-EQ-7

Features:

• 7 Band Graphic Equalizer

• 8 Volt Line Driver

• Rear Panel Auxiliary 2 Channel RCA Inputs With Adjustable Input Gain

• Rear Panel Front/Rear/Subwoofer RCA Outputs

• Variable Volume Level Control

• Variable Subwoofer Level Control

• Adjustable Fader Control

• Selectable 12dB Low-Pass Crossover (60hz Or 90hz)

• Dual Illumination (Amber / Blue)

Specs:

• Power Supply: 11-15 VFC Negative Ground

• Max Output Voltage: 7V RMS

• Pre Graphic Frequency: 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, 16KHz

• Equalization Range: +12dB

• Subwoofer Frequency: 60Hz/120Hz

• Input Impedance: 10KOhms

• S/N Ratio: 90dB

• THD: 0.03%

• Frequency Response: 10Hz - 60KHz

• Dimensions: 7" x 4.125" x 1"

• Total Weight (Approx.): 2 lbs.

Owner's Manual / Spec Sheet

Shop For Wiring & Batteries

Please feel free to send us a message if you have any questions about this item.
