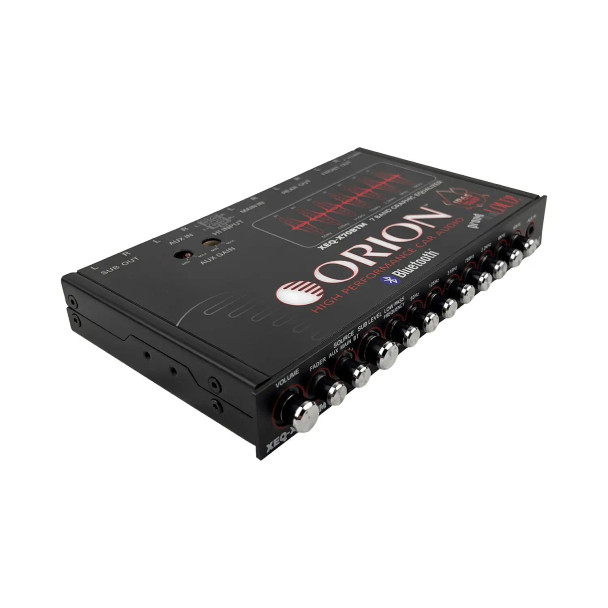

Orion XEQ-X70BTM | 7 Band Graphic Equalizer w/ 8-Volt Line Driver

Orion XEQ-X70BTM | 7 Band Graphic Equalizer w/ 8-Volt Line Driver

The XTR XEQ-X70BTM is a marine-grade 7-band graphic equalizer designed to bring precision audio tuning to your boat's sound system, while providing the convenience of Bluetooth connectivity. This robust equalizer is IPX5 rated, ensuring it can withstand harsh marine environments, making it perfect for enhancing audio on boats or other watercraft.

Featuring seven adjustable frequency bands (ranging from low bass to high treble), the XEQ-X70BTM allows for fine-tuning of your audio output, ensuring you can adjust each band to suit specific tastes and audio needs. The inclusion of high-level inputs and Bluetooth capability offers versatile connectivity options, enabling wireless streaming from mobile devices and easy integration with existing audio systems.

In addition to its sound customization features, the XEQ-X70BTM boasts a solid build quality with protective measures against moisture and water exposure. It is designed with marine use in mind, from its durable controls to the water-resistant housing, providing reliable performance and longevity. Whether you’re anchoring in a quiet cove or cruising open waters, this equalizer enhances your marine audio experience with clear, tailored sound.

Also Known As: XEQX70BTM / XEQ-X70-BTM

Specs:

• Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz

• Boost/Cut Range: ±12dB

• Signal-to-Noise Ratio (S/N): 83dB

• Frequency Response: 8Hz - 140kHz +/-1dB

• Maximum Output Voltage: 8V

• Total Harmonic Distortion (THD): 0.01%

• Input Sensitivity (RCA): <3.6V

• Input Sensitivity (High): <10.8V

• Input Impedance: 20K Ohms

• Output Impedance: 1K Ohms

• Stereo Separation: 73dB at 1kHz

• Operating Voltage: 11V - 15V (negative ground)

• Dimensions: 7" x 4.25" x 1"

• Total Weight (Approx.): 2 lbs.

Owner's Manual / Spec Sheet
