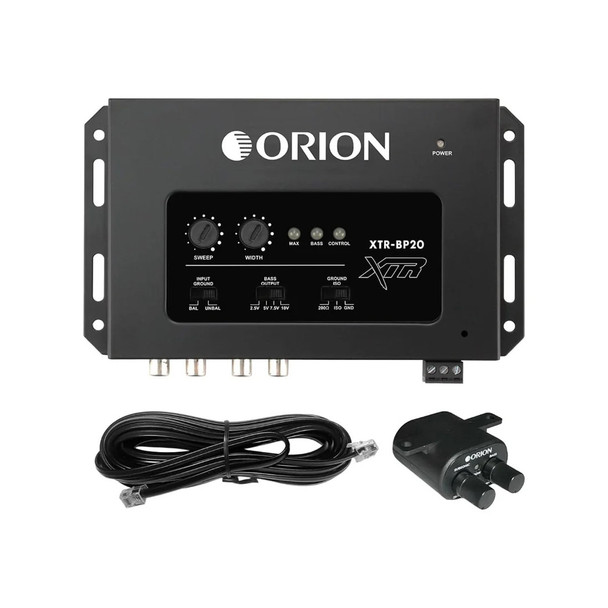

Orion XTR-BP20 | Digital Bass Processor Line Driver w/ Remote Bass Knob

Orion XTR-BP20 | Digital Bass Processor Line Driver w/ Remote Bass Knob

Upgrade your car audio system with the XTR-BP20 Bass Processor. It restores and enhances low-frequency performance for better bass. This processor recovers bass often lost in compressed music and factory systems. As a result, your subwoofer delivers deeper and tighter output. In addition, it improves clarity and control.

Also Known As: XTRBP20 / XTRBP-20 / XTR-BP-20

Features:

• Bass Restoration Technology
• Sweep Frequency Control
• Width Bandwidth Control
• Selectable Output Voltage
• High Signal-to-Noise Performance
• Ultra-Low Distortion Processing
• Balanced / Unbalanced Input Selection
• Ground Isolation Control
• Remote Bass Control Support

Specs:

• Power Supply: 6.5V – 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.5V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -70 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz – 30 kHz
• Subsonic Filter: 31 Hz – 71 Hz
• Current Draw: 180 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A
• Dimensions: 7.28" x 4.13" x 1.02"
• Weight (Approx.): 1 lbs.

Owner's Manual / Spec Sheet

Please feel free to send us a message if you have any questions about this item.
