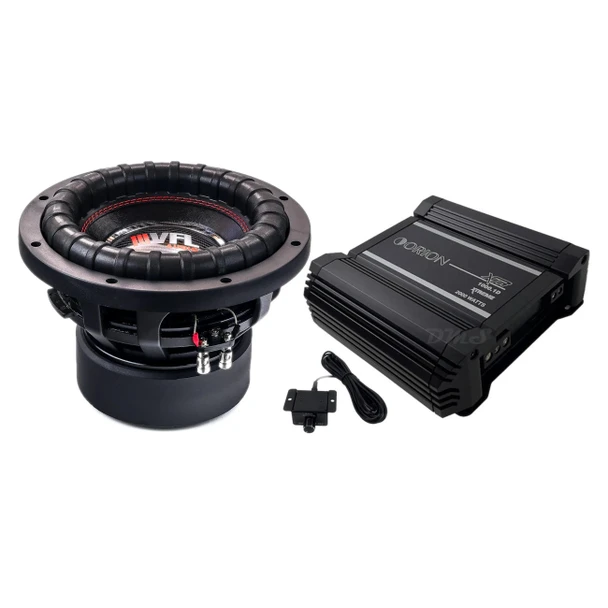

VFL Audio VLF 10 Package | 10" 1600W D4 Subwoofer & Orion XTR1000.1D Amplifier

Sub & Amp Package Deal

(1) VFL Audio VFL 10 Inch 1600W DVC 4 Ohm Subwoofer | VFL1044

(1) Orion XTR 1000W RMS Monoblock Subwoofer Amplifier | XTR1000.1D

*This setup is intended to run at 2 Ohms

The VFL series from American Bass is specially designed to give you power and sound that leaves the competition behind. The VFL 10" subwoofer boasts 800W RMS of power with a 150 oz magnet to unleash bass that reverberates through your very core. Engineered with dual 4-ohm impedance and a robust 2.5" voice coil, this subwoofer stands as a beacon of American Bass USA's dedication to superior sound, ensuring every pulse of bass is sharp, deep, and utterly transformative.

Also Known As: VFL-1044 / VFL10D4 / VFL-10D4 / VFL-10-D4

Subwoofer Details:

• MAX Power Handling: 1600W
• RMS Power Handling: 800W
• Impedance: DVC 4 Ohm
• Sensitivity: 83.4 dB
• Mounting Depth: 6.46"
• Mounting Diameter: 9.13"
• Weight: 22 lbs.
• 2.5" Diameter 4-Layer High-Temp Voice Coil
• Heavy Duty Die Cast Basket With Black Powder Finish
• Kevlar Fiber Added Non-Press Paper Cone
• Red Stitched Hi-Roll Ribbed Foam Surround
• Kevlar Woven Composite Dust Cap
• Black Poly-Cotton Spider With Mirror Image Top Spider With Woven Tinsel
• Double Stacked 150oz. Magnet
• Direct VC Cooling Motor
• Rubber Gasket & Magnet Boot
• Recommended Ported Box Size: 1.75 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 1080W RMS X 1 @ 1 Ohm
• 790W RMS X 1 @ 2 Ohms
• 510W RMS X 1 @ 4 Ohms
• Frequency Response: 15Hz - 250Hz
• Linear Bandwidth: 15Hz to 250Hz +/- 3 dB
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >80%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: 10 - 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 100A External (not included)
• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 12 AWG
• Speaker Output Terminals: 12 AWG
• Dimensions: 8.66" x 9.25" x 2.75"
• Weight (Approx.): 7.3 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter
• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage
