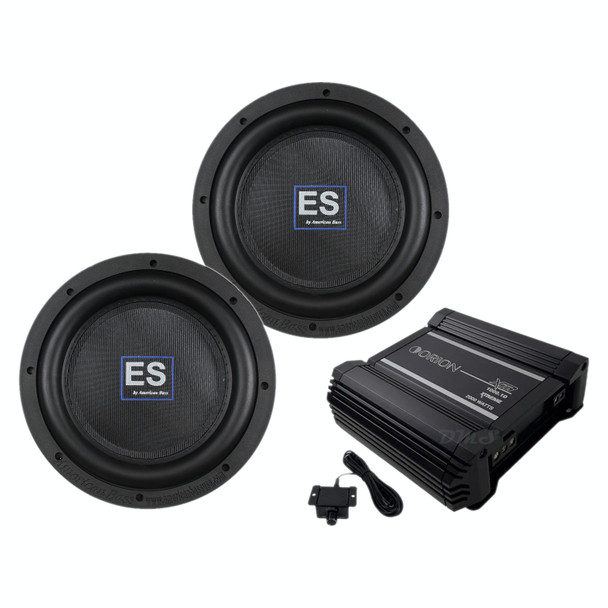

American Bass ES 10 Package | Dual 10" 1000W D4 Slim Subwoofers & Orion XTR1000.1D Amplifier

Sub & Amp Package Deal

(2) American Bass ES 10 Inch 1000W DVC 4 Ohm Slim Subwoofers | ES1044

(1) Orion XTR 1000W RMS Monoblock Subwoofer Amplifier | XTR1000.1D

*This setup is intended to run at 1 Ohm

Need some bass in your life, but don't have the space? Look no further than American Bass' ES Slim Subwoofer. At only 3.6" mounting depth, this woofer is as slim as they come but don't let its size fool you - packing a 2.5" DVC (Dual Voice Coil) sitting atop a 65oz Magnet and Fiberglass Reinforced Dust Cap, it can put out up to 1000 watts of powerful sound! Get more from less with an ES Slim Subwoofer from American Bass.

Also Known As: ES-1044 / ES10 / ES10D4 / ES-10D4 / ES-10-D4

Sub Details (each):

• MAX Power Handling: 1000W
• RMS Power Handling: 500W
• Impedance: DVC 4 Ohm
• Sensitivity: 86 dB
• Frequency Response: 35Hz - 500Hz
• Mounting Diameter: 9.25"
• Mounting Depth: 3.66"
• Weight: 16 lbs.
• Stitched Rubber Surround
• Fiberglass Reinforced Cap
• 2.5" Aluminum Voice Coil
• 65oz High-Energy Magnet Structure
• Recommended Ported Box Size: 0.5 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 1080W RMS X 1 @ 1 Ohm
• 790W RMS X 1 @ 2 Ohms
• 510W RMS X 1 @ 4 Ohms
• Frequency Response: 15Hz - 250Hz
• Linear Bandwidth: 15Hz to 250Hz +/- 3 dB
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >80%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: 10 - 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 100A External (not included)
• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 12 AWG
• Speaker Output Terminals: 12 AWG
• Dimensions: 8.66" x 9.25" x 2.75"
• Weight (Approx.): 7.3 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter
• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage

Shop For Wiring & Batteries

Shop For Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
