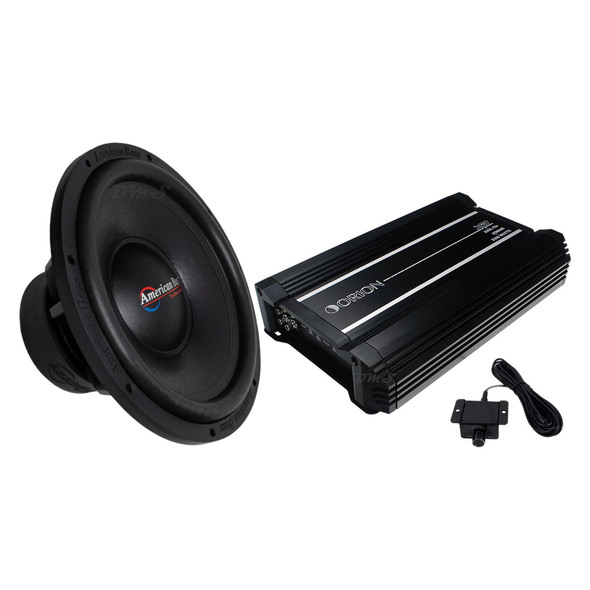

American Bass XFL 10 Package | 10" 3000W D4 Subwoofer & Orion XTR2500.1DZ Amplifier

Sub & Amp Package Deal

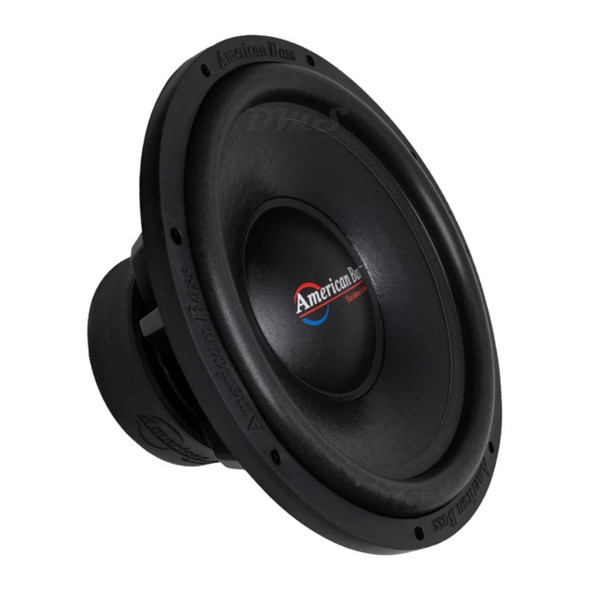

(1) American Bass XFL 10 Inch 3000W DVC 4 Ohm Subwoofer | XFL1044 V2

(1) Orion XTR 2500W RMS Monoblock Subwoofer Amplifier | XTR2500.1DZ

*This setup is intended to run at 1 Ohm

Ready to shake things up? Look no further than American Bass’ XFL series subwoofers for your car sound system. The XFL is a world-renowned, record-breaking subwoofer that delivers power and quality beyond the competition. With its rock-solid structure and crisp, clean power output, the XFL offers reliability and top-notch performance and will make your car come alive with power and sound. And since being introduced, the XFL has become our premier sub – proving that when it comes to big sound, you don’t have to mess around! So what are you waiting for? Get your American Bass XFL subwoofer today and experience a new level of music.

Also Known As: XFL-1044 / XFL10D4 / XFL-10-D4 / XFL10-D4 / XFL-10D4

Subwoofer Details:

• MAX Power Handling: 3000W
• RMS Power Handing: 1500W
• Impedance: DVC 4 Ohm
• Sensitivity: 83.5 dB
• Mounting Diameter: 9.37”
• Mounting Depth: 7.36"
• Weight: 36 lbs.
• 3.0" High Temp CCAW Voice Coil
• Die Cast Aluminum Basket
• Carbon-Kevlar Enforced Paper Cone
• Multilayer High Density Foam Surround
• Triple Stacked 200oz. Magnet Structure
• Cooling Pump Motor Design
• Uni-Rubber Gasket and Rubber Motor Boot
• Recommended Ported Box Size: 1.25 - 1.50 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 2500W RMS X 1 @ 1 Ohm
• 1750W RMS X 1 @ 2 Ohms
• 1250W RMS X 1 @ 4 Ohms
• Frequency Response: 20Hz - 250Hz
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: Off / 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses Rating: 250A External (not included)
• Positive Terminals: 1 x 0 AWG
• Negative Terminals: 1 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 14.17" x 9.25" x 2.75"
• Weight (Approx.): 12.65 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter
• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage

Shop For Wiring & Batteries

Shop for Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
