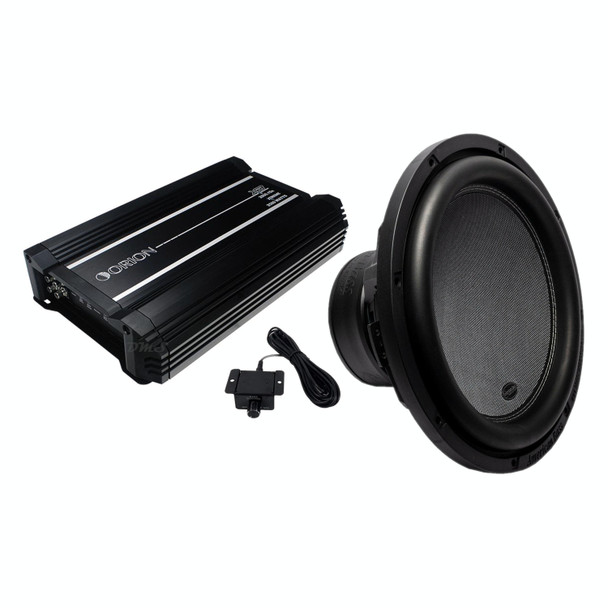

American Bass XR 15 Package | 15" 3000W D4 Subwoofer & Orion XTR2500.1DZ Amplifier

Sub & Amp Package Deal

(1) American Bass XR 15 Inch 3000W DVC 4 Ohm Subwoofer | XR15D4

(1) Orion XTR 2500W RMS Subwoofer Amplifier | XTR2500.1DZ

*This setup is intended to run at 2 Ohms

Get ready to experience a whole new level of bass with American Bass’ XR Series Subwoofer! If you’re serious about sound, this is the way to go. Unlike other subwoofers, The XR is equipped with newly re-designed terminals that have been conveniently positioned on one side, making installation faster and easier than ever. Just plug it in, turn up the volume and get ready to shake the ground beneath your feet!

The XR Series Subwoofer has no equal with its fiberglass reinforced cone, cast frame and stitched rubber surround. No matter what type of music you love, you can be sure that every note will be heard loud and clear for an unforgettable listening experience. So don’t wait any longer – get American Bass’ XR Series Subwoofer now for mind-blowing sound quality and bass so low you can feel it in your gut!

Also Known As: XR-15D4 / XR-15-D4 / XR15-D4 / XR1544 / XR-1544

Subwoofer Details:

• MAX Power Handling: 3000W
• RMS Power Handing: 1500W
• Impedance: DVC 4 Ohm
• Sensitivity: 86 dB
• Mounting Diameter: 14.09"
• Mounting Depth: 8.66"
• Weight: 36 lbs.
• 3.0" Diameter High-Temp 4-Layer Voice Coil
• 200oz. Double Stacked Magnet Structure
• Black Power Coated Diecast Aluminum Basket
• Stitched Rubber Surround
• Woven Fiberglass Reinforced Cone
• PVC Gasket Ring & Magnet Boot
• Chrome Push Terminals
• Recommended Ported Box Size: 3.0 - 3.5 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 2500W RMS X 1 @ 1 Ohm
• 1750W RMS X 1 @ 2 Ohms
• 1250W RMS X 1 @ 4 Ohms
• Frequency Response: 20Hz - 250Hz
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: Off / 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses Rating: 250A External (not included)
• Positive Terminals: 1 x 0 AWG
• Negative Terminals: 1 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 14.17" x 9.25" x 2.75"
• Weight (Approx.): 12.65 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter
• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage

Shop For Wiring & Batteries

Shop for Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
