VFL Audio

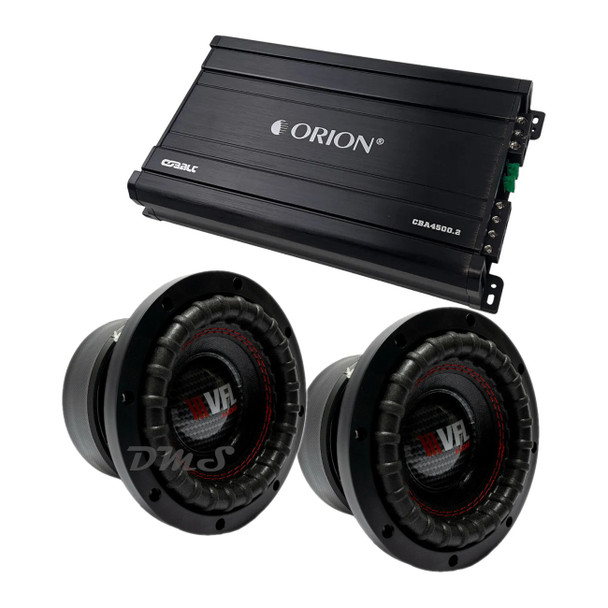

VFL Audio VFL 6.5 Package | Dual 6.5" 600W D4 Subwoofers & Orion CBA4500.2 Amplifier
- MPN:
- VFL-6544, CBA4500.2
- Condition:
- New
- Shipping:
- Free (2 to 6 Business Days)
Description
Sub & Amp Package Deal
(2) VFL Audio VFL 6.5 Inch 600W DVC 4 Ohm Subwoofers | VFL6544
(1) Orion Cobalt 4500W Max Monoblock Subwoofer Amplifier | CBA4500.2
*This setup is intended to run at 4 Ohms Bridged
The VFL series from American Bass is specially designed to give you power and sound that leaves the competition behind. The VFL 6.5" subwoofer boasts 300W RMS of power with a 70 oz magnet to unleash bass that reverberates through your very core. Engineered with dual 4-ohm impedance and a robust 2" voice coil, this subwoofer stands as a beacon of American Bass USA's dedication to superior sound, ensuring every pulse of bass is sharp, deep, and utterly transformative.
Also Known As: VFL-6544 / VFL65D4 / VFL-65 / VFL65 / VFL6.5
Sub Details (each):
• MAX Power Handling: 600W
• RMS Power Handling: 300W
• Impedance: DVC 4 Ohm
• Sensitivity: 81.3 dB
• Mounting Diameter: 5.98"
• Mounting Depth: 4.06"
• Weight: 9 lbs.
• 2.0" 4-Layer High-Temp Voice Coil
• Heavy Duty Die Cast Basket With Black Powder Finish
• Kevlar Fiber Added Non-Press Paper Cone
• Red Stitched Hi-Roll Ribbed Foam Surround
• Kevlar Woven Composite Dust Cap
• Black Poly-Cotton Spider With Mirror Image
• Top Spider With Woven Tinsel
• Double Stacked 70oz. Magnets
• Direct VC Cooling Motor
• Rubber Gasket & Magnet Boot
• Recommended Ported Box Size: 0.6 Cubic Feet
• Owner's Manual / Spec Sheet
Amplifier Details:
• 4500W Peak Rating
• 300W RMS X 2 @ 2 Ohms
• 125W RMS X 2 @ 4 Ohms
• 600W RMS X 1 @ 4 Ohms Bridged
• Frequency Response: 10Hz - 30kHz
• High Pass Crossover Continuously Variable: 50 - 1.2kHz
• Low Pass Crossover Continuously Variable: 40 - 250Hz
• Supply Voltage: 10 - 16V
• Input Impedance: 22k Ohm
• Signal to Noise Ratio: >90 dB
• Variable Bass Boost: 0 - 12dB
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 60A (2 x 30A ATC)
• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 10 AWG
• Dimensions: 12.28" x 7.09" x 2.13"
• Weight (Approx.): 5 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 2-Ohm Stable
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage
